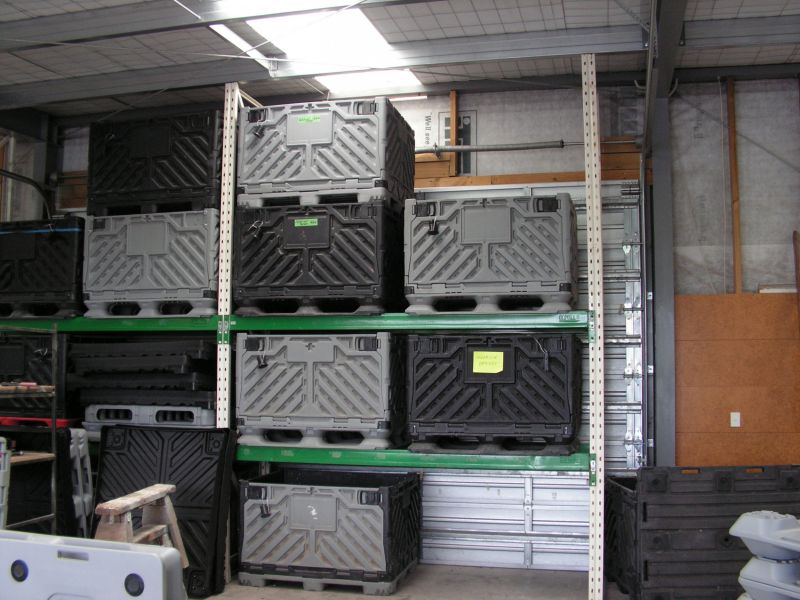

2 Piece Collapsble Racking Pallet Bins
Collapsible plastic pallet bin on rigid rackable pallet. Designed for general purpose applications the bin can be folded flat for shipping when empty and can be secured using an optional moulded lid.
The Pallenz rackable plastic collapsible pallet bin has a loading capacity of 706 cubic litres and can be fitted with optional document holders and dead-eyes for document storage and security.
Longevity is ensured through the use of user removable panels and repairable parts. Nine RFID capsule holders are provided as standard equipment with each bin.
Click here to view Pallenz Pallet Bin Brochure
Design based on a UDL - Uniformly distributed load
External Dimensions:1200 x 1000 x 840
Internal Dimensions: 1124 x 924 x 680
Collapsed Dimensions: 1200 x 1000 x 280
Internal Volume: 0.706m3
Single Local Rating: 700kg
Weight: 60kg
Weight With Lid: 68kg
Virgin Food Grade Material: x
Four Way Entry: x
RFID Tag Capsule: x

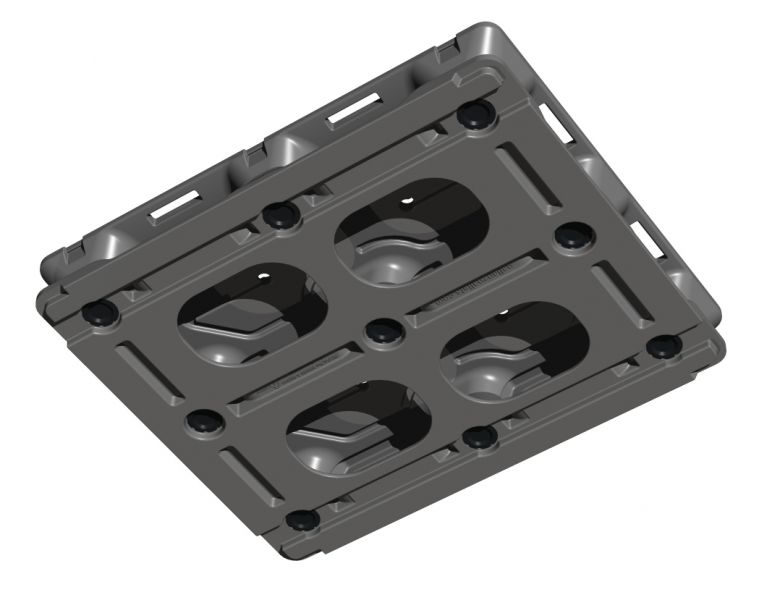

2 Piece Racking Pallet
A heavy duty pallet constructed from two halves and joined together with the Pallenz patented J-Bolt. The J-Bolt has a two fold use being an integral part of the pallet and also for the housing of devices such as RFID chips.
Built-in special features include the Pallenz racking rebate that helps to eliminate slipping on selective pallet racking systems minimising the risk of product loss / damage and personal injury.
Click here to view Pallenz Pallet Bin Brochure
Design based on a UDL - Uniformly distributed load
External Dimensions: 1200 x 1000 x 150
Static Load: 6000kg
Dynamic Load: 1000kg
Weight: 24kg
Virgin Food Grade Material: x
Four Way Entry: x
RFID Tag Capsule: x

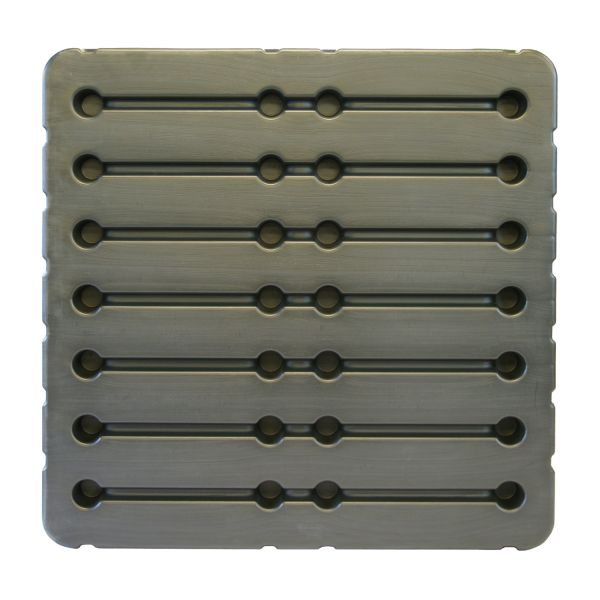

Hercules
Moulded in one piece the Palmart GD 1165mm plastic pallets is designed for perfect shipping container optimsation and easy cleaning.
Built-in racking safety rebates are standard.
The square dimensions lend themselves perfectly to bulk bags and an option of virgin or recycled materials is available.
External Dimensions: 1165 x 1165 x 150
LD
Weight: 11
Material: HDPE
Dynamic Weight: 1000kg
Racking Weight: 250kg
Static Weight: 1000kg
Two Way Entry: x
External Dimensions: 1165 x 1165 x 150
GD
Weight: 16
Material: HDPE
Dynamic Weight: 1000kg
Racking Weight: 500kg
Static Weight: 1000kg
Two Way Entry: x
External Dimensions: 1165 x 1165 x 150
HD
Weight: 21
Material: HDPE
Dynamic Weight: 1000kg
Racking Weight: 1000kg
Static Weight: 1000kg
Two Way Entry: x

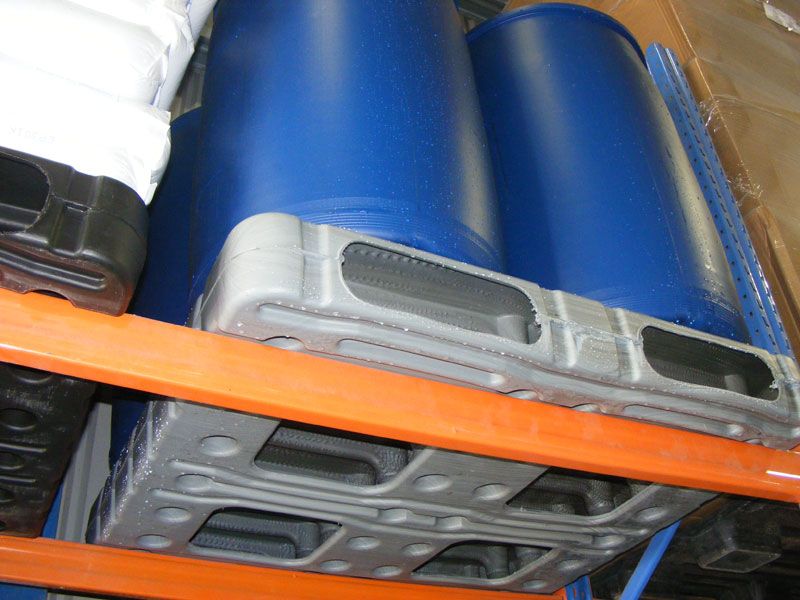

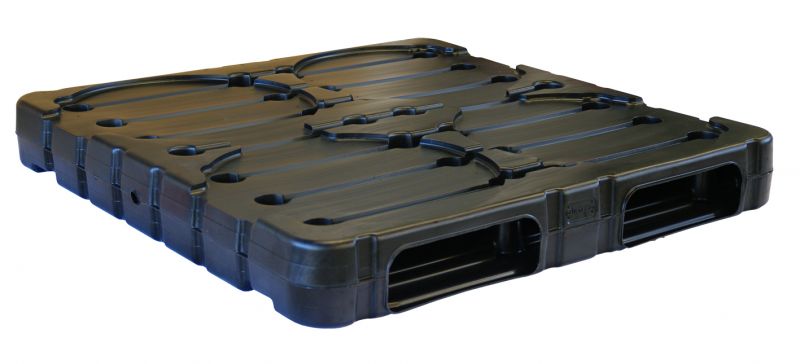

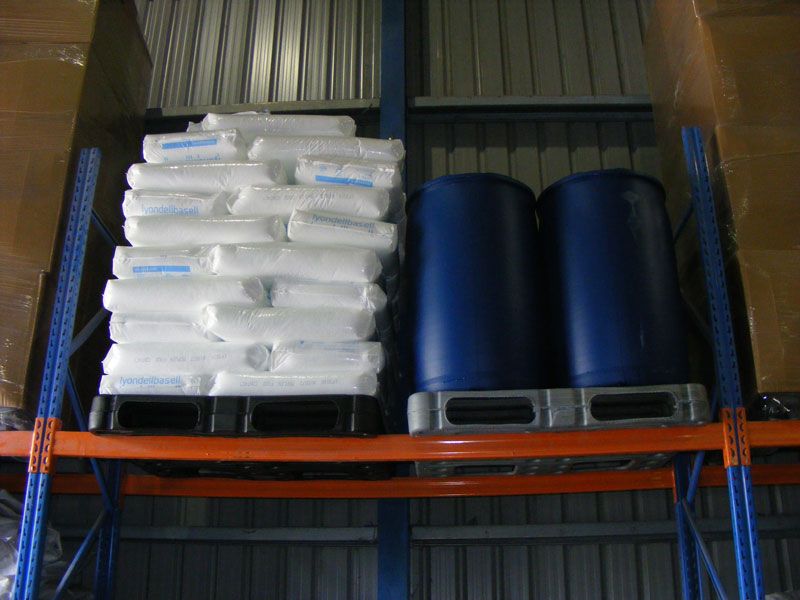

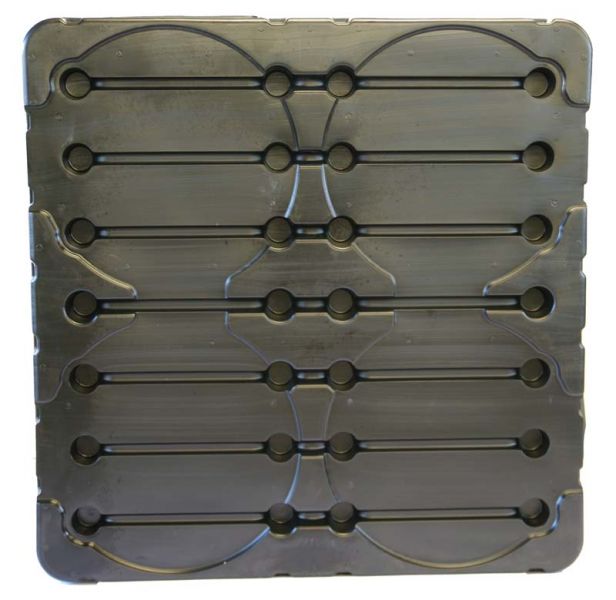

225 Litre Drum Pallet
Designed specifically for the transport and racking of plastic 200 litre drums, the Palmart Drum Pallet is moulded in one piece, is easy to clean, and includes the Pallenz racking safety rebate to reduce the risk of accidental dislodgement from selective pallet racking.
Click here to view Pallenz Pallet Bin Brochure
Design based on a UDL - Uniformly distributed load
External Dimensions: 1165 x 1165 x 150
Weight: 21 kgs
Material: HDPE
Dynamic Weight: 1000kg
Racking Weight: 1000kg
Static Weight: 1000kg
Two Way Entry: x
PALLENZ PLASTICS PALLETS ARE:
Manufactured from food grade HDPE
IMPORTANT - Weights are based on ISO information for an uniformly distributed load (UDL)
Pallets for point loads must have a customised design
Made in a zero waste facility where all wate is utliised elsewhere in the factory
Are manufactured for New Zealand standard pallet racking
Racking pallets have in built recesses to secure the pallet against accidental dislodgement
Bins are locakable thereby ensuring product is protected both from the elements and from theft
All surface are smooth
RFID capsules are built into all Pallenz Plastic products
